Warm-air shower Beluga Fix
The smart alternative
The range also includes the newly developed Beluga warm-air drier as a fixed appliance, although this is not suitable for public facilities. This appliance is also equipped with a high-speed induction motor for reliable continuous operation. Devices can be positioned easily with the help of the cutting-edge, high-frequency radar technology with precisely set range coverage. All warm-air driers have strong, easy-clean plastic housings and can be supplied in numerous colours.
- suitable for demanding, continuous operation on a daily basis
- vandalism-resistant
- compliant with the highest safety requirements
- economical energy consumption
- completely new Swiss design
- even quieter operation
- space-saving with flush installation option
- 20 to 30 years of use
- 20-year parts warranty
The completely newly developed Beluga hot-air shower shines with numerous ingenious details.
Robust plastic hood
The Beluga’s air inlet is at the back, making the plastic hood very robust. A practical innovation: The hood just folds down for repairs and maintenance. The hair dryer stays at the desired height.
High-performance induction motor
The motor unit is sealed so that no dust or moisture can penetrate the electronics and bearings. For long-term, trouble-free operation, dust and dirt have to be removed from the fan regularly. This is an easy process thanks to the modular system.

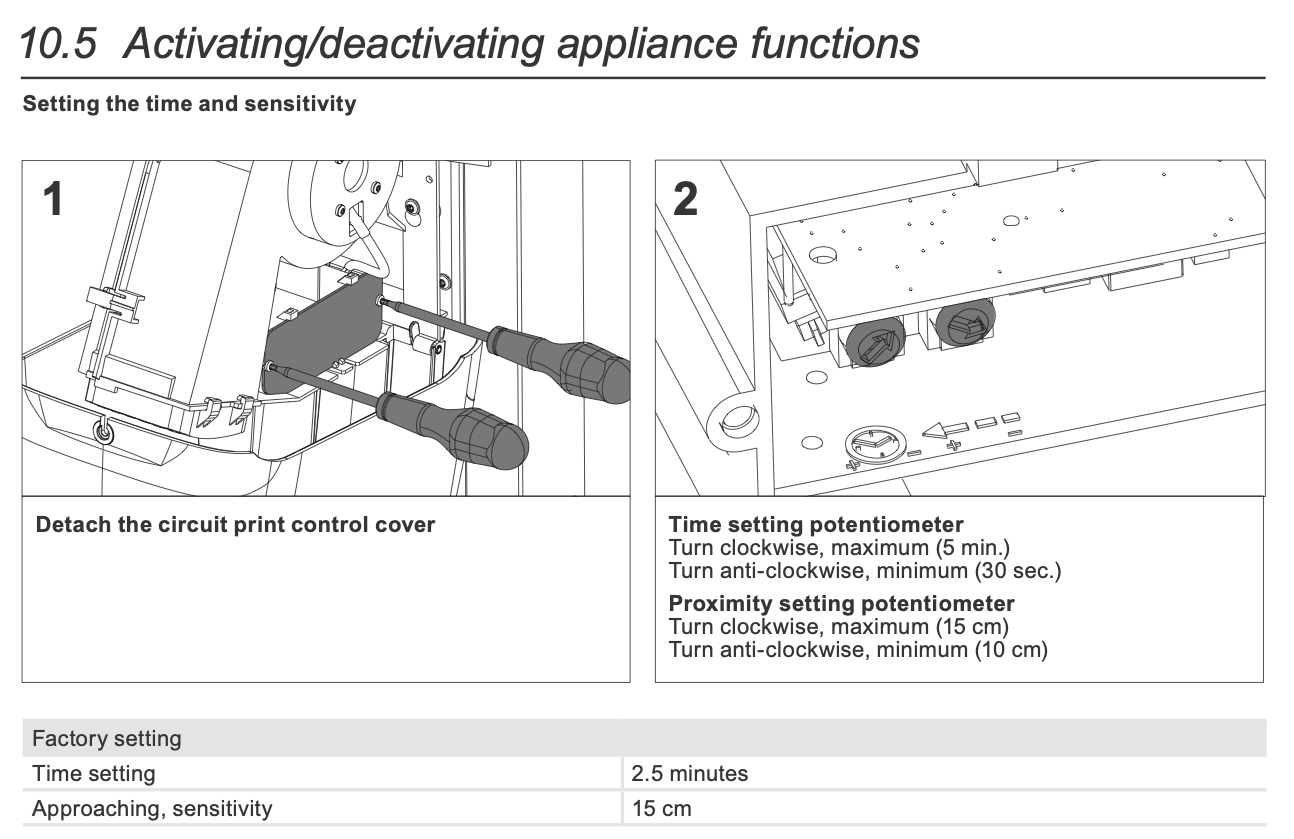

High-frequency radar with timer and distance setting
World exclusive in the Beluga warm-air showers. The customer can individually set the time (30 sec.– 5 min., factory setting 2.5 min.) and the distance (10–15cm) to suit his or her own needs.
Ceramic heater
The ceramic heater is non-flammable. The 0.7mm heating filament is indestructible. The heater is fitted with double overheating protection, ensuring a high level of safety. However, if overheating does occur, the unit will switch off automatically and start again after cooling with no damage to the unit. Important: Dust must be removed from the unit every 3 months. The heater is easy to clean thanks to its ease of access, ensuring a long lifespan.
Maintenance made even easier
Because of its simple design (modular principle), the Beluga is easy to disassemble. This ensures easy maintenance by the customer. Maintenance costs are reduced. Any repair takes five minutes at most. Thorough cleaning is completed in less than
ten minutes.
Maintenance
This video shows the simple cleaning routine that needs to be carried out 3-4 times a year. (Hair dryer)
Dimensions
Technical data
Vandalism-resistant plastic casing
×
Fixed unit
×
Height adjustment system (530mm)
with mirror
HF radar technology with timer
×
Air exhaust m3/h
258
Discharge air temperature °C
65
Weight kg
3.7
Dimensions mm (W x H x D)
242 x 300 x 292
- Operating voltage 230V/50Hz
- Nominal output 2000W
- HF radar technology: hands-free motion detection (range 10–20cm)
- With timer: Period adjustable from 30 sec.to 5 min. Factoring setting 2.5 min.
- High performance thanks to induction motor
- Comfortable, simple operation
- Timer
- Quiet (65 dB)
- Low energy consumption
- Sustainable
- 20 to 30 years of use
- 20-year parts warranty
- Vandalism-resistant
Rez warm-air showers comply with the following safety standards
- SEV Mark of Conformity
(international process by Electrosuisse) - Safety mark from the Swiss Federal Inspectorate for Heavy Current Installations (ESTI)
- EU declaration of conformity
- Drip-proof (IPX1)
